DES L3 Split Cable Entry Frame

Regular price £10.20

Tax included. Shipping calculated at checkout.

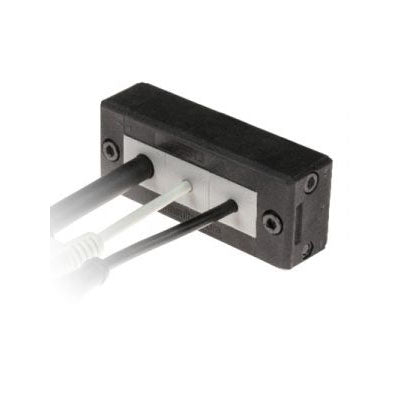

Splittable cable entry frame. Suitable for sealing and securing cables with connectors. Combination of split frame and rubber inserts to suit the cable. Ingress protection up to IP66.

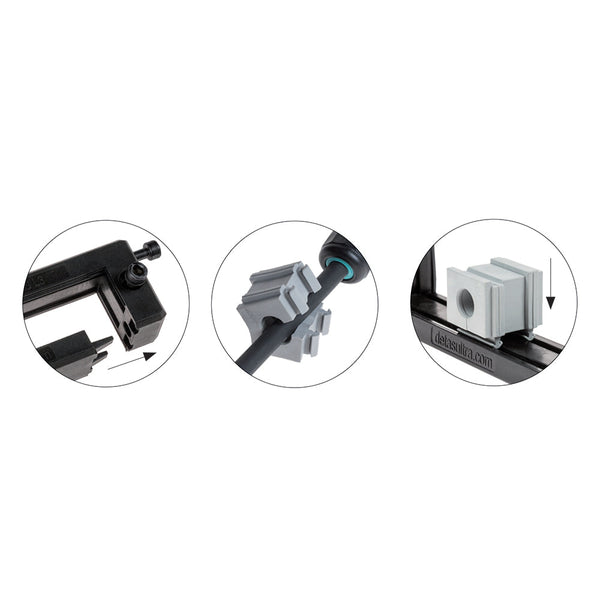

Simple installation. One cut-out for multiple cables. Simply feed all cables through the one cut-out and then use the DES system to seal and secure the cables. Reduce installation times and costs.

Multiple frame sizes. The system is available in different frame sizes. Ensuring that the space required can always be kept to a minimum.

Large number of cable inserts. Cable inserts from 2mm up to 34mm. Multi-hole inserts are also available ensuring the best use of space. See the full range of available inserts.

  • Seal to IP66
  • Integrated Gasket
  • Strain Relief to EN62444
  • Sturdy Construction to IK10
  • Flammability to UL94-VO
  • Halogen and Silicon free.
  • Temp Range -40 to +155 degrees C.
  • ATEX version on request

The DES L3 requires 3 small cables inserts.
Cable inserts are purchased separately.

Cable Inserts

Catalogue Information
